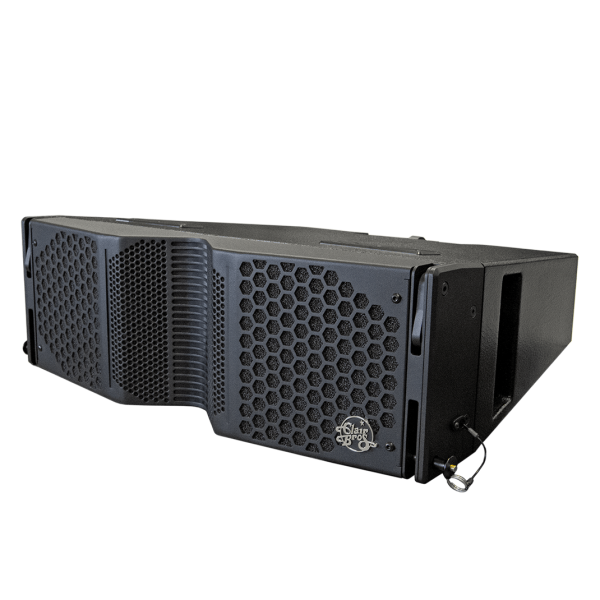

C8

• Three-Way Active (Bi-Amp with Passive Mid/Hi)
• Frequency Response: 60Hz–20kHz (+/- 3dB) | (-10dB) 54Hz–22kHz Single Cabinet
• Recommended Power Amplifier: CB-PLM12K44 or CB-D80:4L
• Max. Output: 145 dB SPL
• Drivers: LF: (2) 8”; MF: (1) 3.5”; HF: (1) Exit 1.4″; VC diameter 1.75″
• Nominal Impedance: LF: 16 Ohms, (MF: 16 Ohms; HF: 16 Ohms): Integrated Passive Crossover Network
• Power Handling: Program (AES) (LF) 1600W; (MF) 150W; (HF) 160W
Peak (LF) 3200W; (MF) 500W; (HF) 320W
• Dispersion: Standard: 120°H x 10°V; Optional Horizontal: 50-140°H (10° increments); Clair TrueFit: Custom Tailored Continuously Variable
• Input Connection: (2) EP-4 Connectors – 1 Male, 1 Female

Categorii: ,

Descriere

Model Description
C8-i-120 Installation Active 3-Way (Bi-Amp) Line Array Element, 2×8” LF, 1×3.5” MF, 1×1.4”Exit, 1.75”VC Diam HF (120°H x 10°V)
C8-i-##° Installation Active 3-Way (Bi-Amp) Line Array Element, 2×8” LF, 1×3.5” MF, 1×1.4”Exit, 1.75”VC Diam HF (Optional ##° Horizontal Dispersion [50°-to-140° H in 10° increments])
C8-M-120 Mobile Active 3-Way (Bi-Amp) Line Array Element, 2×8” LF, 1×3.5” MF, 1×1.4”Exit, 1.75”VC Diam HF (120°H x 10°V)
C8-M-##° Mobile Active 3-Way (Bi-Amp) Line Array Element, 2×8” LF, 1×3.5” MF, 1×1.4”Exit, 1.75”VC Diam HF (Optional ##° Horizontal Dispersion [50°-to-140° H in 10° increments])
C8-TrueFit Custom Configured Variable Waveguides
